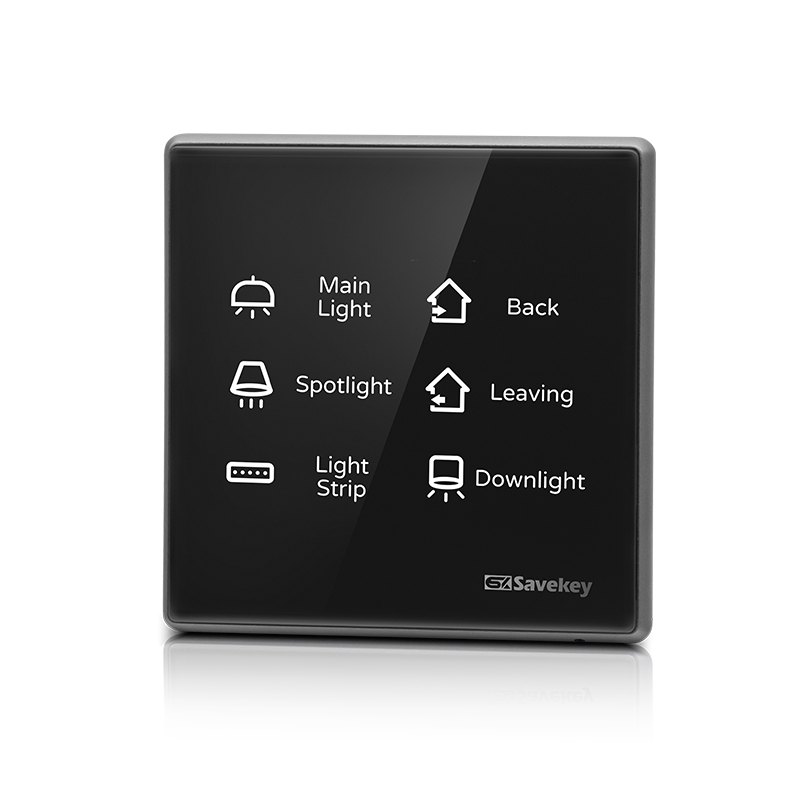

Smart Lighting Switch
Model
Networking light switch (Rainbow)
SW3H-L-N-EU100240Parameters
Working parameters
Zero fire access, AC100 ~ 240V 50 / 60Hz or DC 12V 200mA (for central control network control)
Control mode
4-way 10A relay, maximum load of each way is 4a, total load is less than 14a, 220V output / 4-way 10A relay, with COM interface, can be mixed with strong and weak output control
Load parameters
LED lamp ≤ 300W, daytime running lamp ≤ 600W, incandescent lamp ≤ 800W
Networking mode
Wired RS485, wireless S-bus 2.4G, wireless WiFi
Touc-hscreen type
Capacitive touch
12V external power supply
150mA
Key feedback
shock
Screen backlight
8 colors, button independent custom
Key content
Custom laser engraving
Dry contact scenario
Two dry contact input detection, with two trigger scenarios
Infrared control
Can control infrared equipment (such as: air conditioning, video)
Working humidity
0%~90%
working temperature
-10℃~ +50℃
Installation requirements of bottom box
86x86mm, depth 50mm
Frame material
Arc aluminum alloy frame (dark gray) + magnetic glass (carving)
